CNC Round Pipe Hydraulic Punching Machine is a fully automatic CNC punching machine horizontally hedged by two hydraulic cylinders. Two sets of hydraulic cylinders will punch round tubes from opposite sides, to facilitate the punching arete removal and prevent it from getting stuck in the punching die. The operator loads the pipe into the punching molds, and the machine servo feeder will feed pipes automatically according to the set distance and punch the hole automatically. The operator sets data in the touch screen, and the PLC control system will automatically save the parameters, such as pipe length, holes quantity, hole distance, pipe quantity, and then the machine will automatically complete the punching.
CNC Round Pipe Hydraulic Punching Machine Parameters
- CE Certificate: YES
- Control: CNC Automatic
- Capacity: 45 Holes/min
- Accuracy: ±0.3mm
- Max. material thickness: 10mm (the thickness can be increased according to customer needs)
- Max. material length: 6000mm (the length can be increased according to customer needs)
- Driven power: Hydraulic
- Whole Machine Max. Hydraulic Press: 24 Tons, 30 Tons, 40 Tons, 50Tons
- Motor Power: 7.5 Kw/11Kw/18.5Kw
- Voltage: 380-415V 3 Phases 50/60Hz Customized
- Dimensions: 6800x1000x1700mm(As per requirement)
- Net weight: About 2000 Kgs
- Available materials: round pipe, square pipe, stainless steel pipe, carbon steel pipe, iron pipe, aluminum profile, PVC, etc.
Applications
CNC horizontal double-cylinder punching machine mainly punching round pipes, and also some of square pipes with special punching requirements. It primarily works for building climbing frames, agricultural spray pipes, boiler soot blowing pipes, high way guardrail, etc. This model adopts a PLC control system, with LED touch screen numerical control, using automated procedures to save much manpower.
Available for different materials, including aluminum profile, stainless steel tube, mild steel pipe, iron pipe, copper tube.
Available for various shapes of holes punching, including square hole, rectangular hole, D shape hole, triangular hole, oval hole, waist circular hole, prismatic hole.
Single workstations punching machine is also available here.
CNC Round Pipe Hydraulic Punching Machine Specifications
This model will adopt two sets of side punching dies, and the hydraulic cylinders on both sides will punch the round tubes from the opposite sides. This design is convenient for arete removal, avoids arete stuck in the die, and prolongs the service life of the punching needle. The gantry milling processe machine to ensure high-precision performance. Hydraulic drive cooling system with forced air cooling.
Features
- High precision. The gantry milling processe whole machine to ensure high-precision performance.
- High quality guide rails and transmission gears.
- Automatic numerical control, saving manpower.
- Hydraulic drive, stepless pressure regulation.
- Punching different shapes of holes after replacing different punches and dies.
- If equipped with a hydraulic cutting unit, the automatic cutting function will be performed.
- Mode selection: Auto/Manual. Single/twin cylinder operation.
- PLC control, time setting, pressure regulation.
- Touch screen, visual digital display, whole process monitoring.
- Automatic fault detection, automatic alarm, display alarm list.
- 24 months warranty for punching machine, 6 months for punching molds.

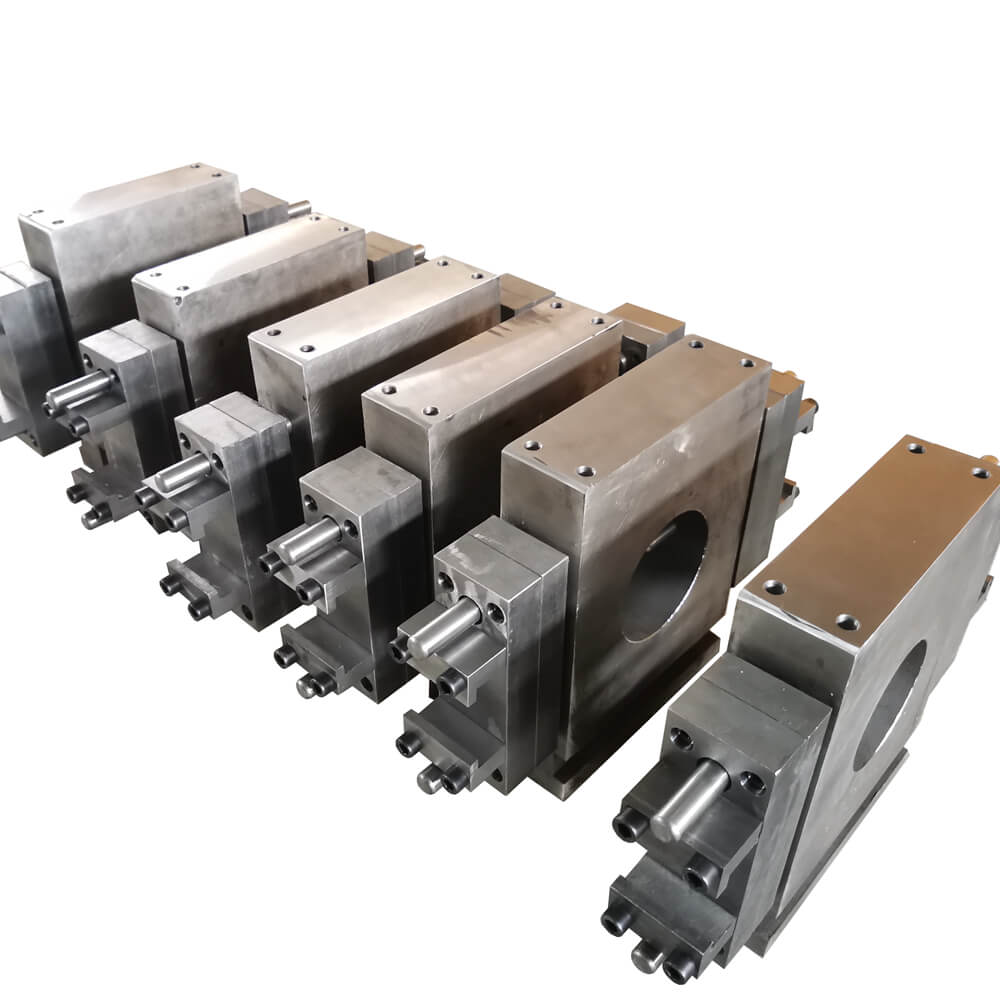

Machine View
