Aluminum V-Notch Cutting Machine is special customized equipment for cutting V-shaped notches at 90-degree angles on aluminum profiles. It is working to make aluminum frames for doors, windows, and other structures.

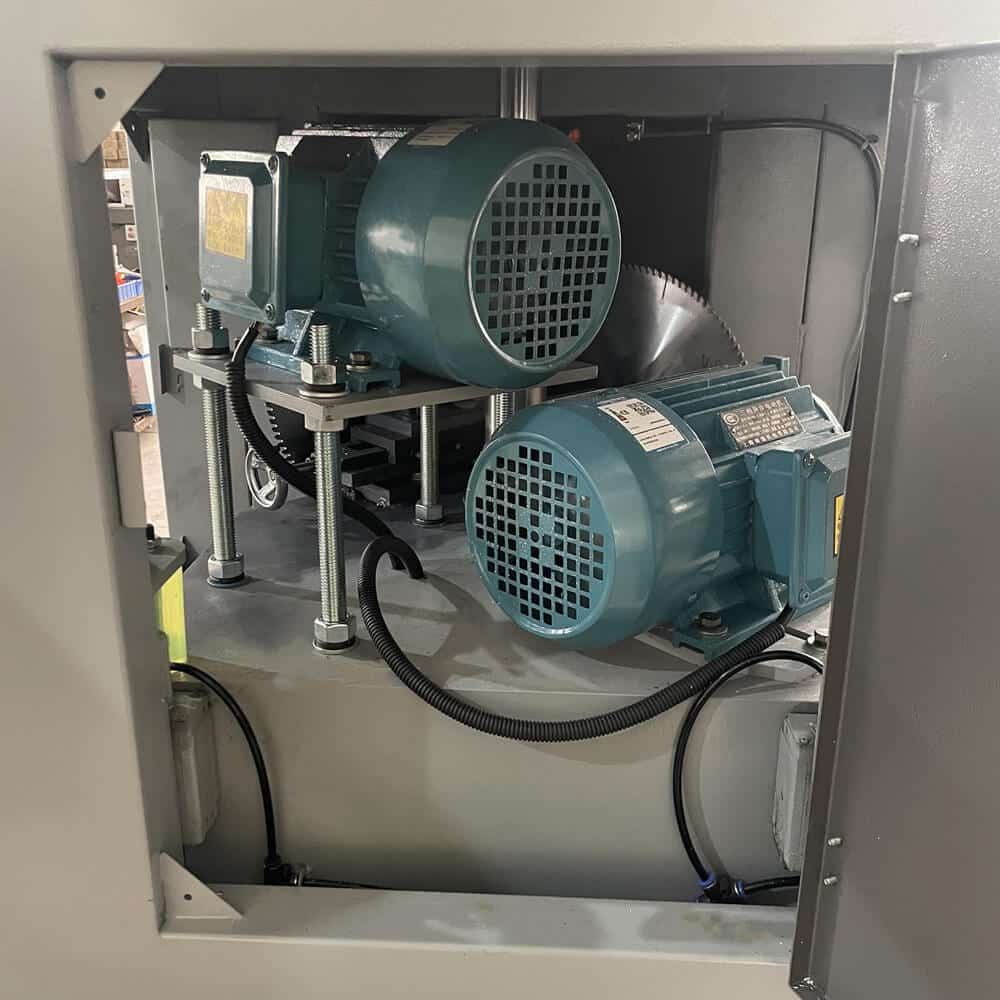

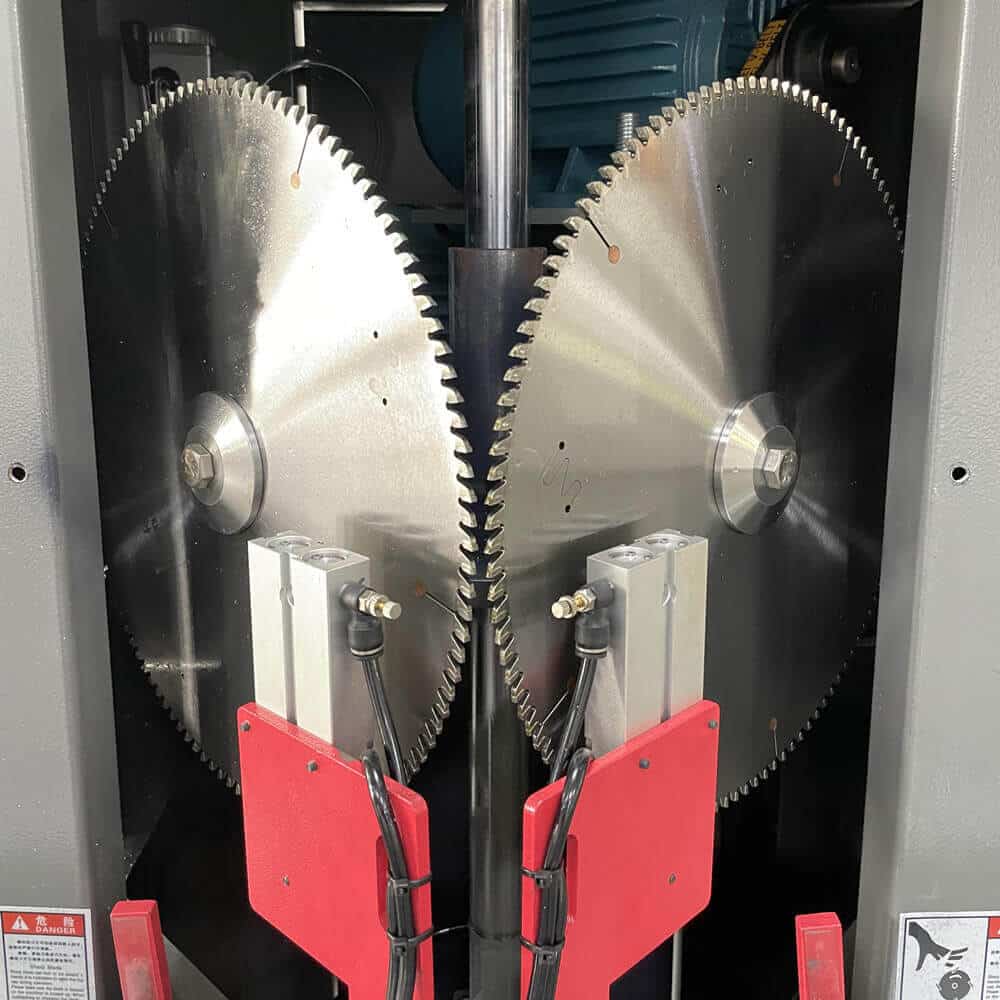

The machine uses two motors to drive two circular saw blades, which are placed in a 90-degree V shape. It is semi-automatic controlled, step on the foot switch, and the pneumatic clamp first clamp the aluminum profile in place, then the saw blade is activated to move down, cutting a V-shaped notch in the profile at a 90-degree angle.
The machine can cut aluminum profiles of different sizes, and can bend the material to 90 degrees after cutting, keeping one side from breaking, thus improving the strength of the frame. There are two different types of machines as options, cut a 90-degree V shape or cut off the material into two 45-degree ends.
Aluminum V-Notch Cutting Machine Parameters
- CE licencija: TAIP
- Kontrolė: Automatinis
- Maksimalus pjovimo plotis: 90mm
- Maksimalus pjovimo aukštis: 100 mm
- Pjovimo kampas: 90 Degrees (fixed)
- Variklio sukimosi greitis: 5000 aps./min
- Įtampa: 380 V 3 fazių arba pritaikytas
- Pjovimo variklio galia: 2.2KW * 2 sets
- Varomoji galia: Pneumatinis
- Pneumatinis slėgis: 0,6–0,8 MPa
- Pjovimo ašmenų judėjimo tipas: Vertical Move Down/Up
- Tinkama medžiaga: Tik aliuminis
- Matmenys: 1060x800x1500mm
- Grynas svoris: About 400 KGS
Programos
Aluminum profile 90-degree V-groove cutting machine is a useful tool for precisely manufacturing aluminum frames and structures, which can greatly improve processing efficiency, and the cutting end face is flat and burr-free, which can realize seamless docking, and is suitable for products with high precision requirements.

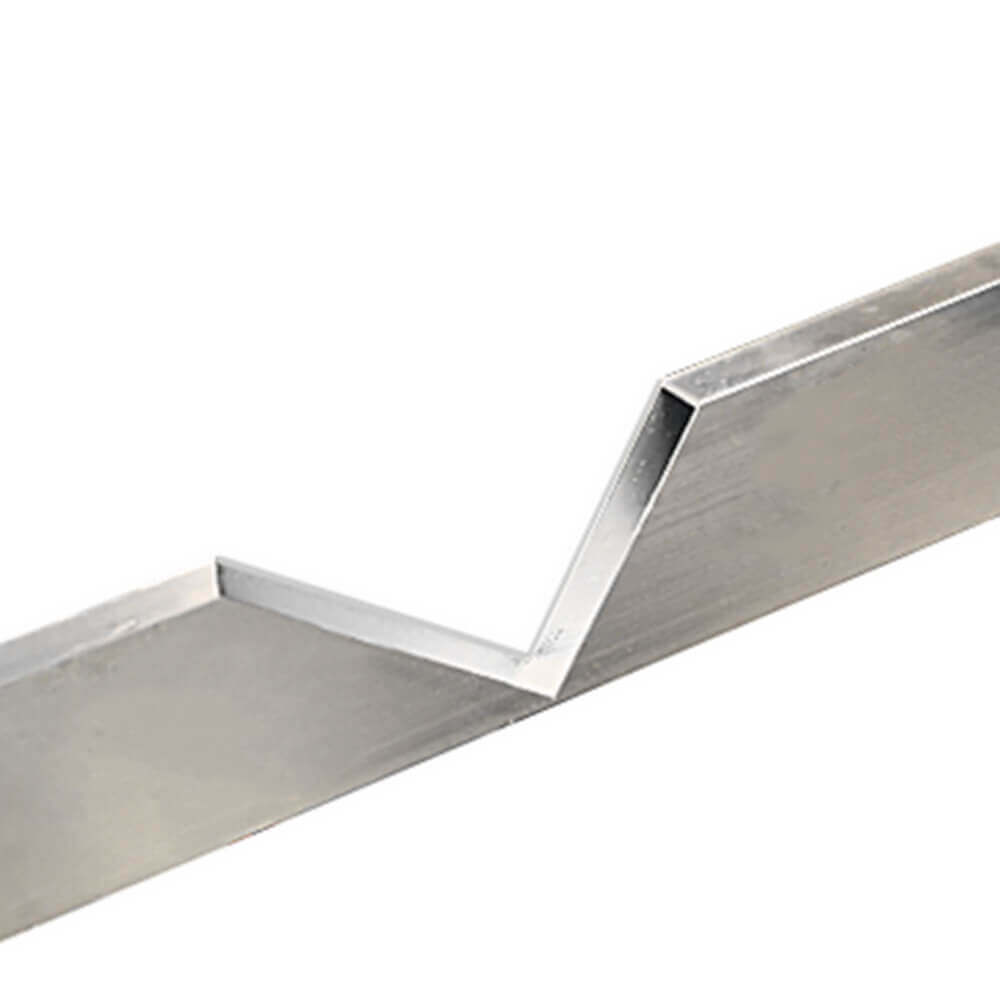

The V-Notches created by the machine have an accurate 90-degree angle and work for bending the aluminum profile into 90 degrees with the corner outer side not breaking. Some of the applications of this machine include:
Aluminum fabrication: The machine commonly works in the aluminum fabrication industry for cutting V-Notches on aluminum profiles to create frames, doors, windows, and other structures.
Signage industry: The machine also works in the signage industry for cutting V-Notches on aluminum profiles for creating custom signs and sign frames.
Furniture manufacturing: The machine can work in the furniture manufacturing industry for cutting V-Notches on aluminum profiles to creating frame structures for chairs, tables, and other furniture pieces.
Construction industry: The machine is work in the construction industry for cutting V-Notches on aluminum profiles for creating frames for doors, windows, and other structures.
Automotive industry: The machine also works in the automotive industry for cutting V-Notches on aluminum profiles for creating custom parts and structures for cars and other vehicles.
Overall, the Aluminum Profile 90-degree V-Notch Cutting Machine is a versatile tool with a wide range of applications in various industries where aluminum profiles commonly work.
In some cases, Hydraulic 90 Degree Angle Notching Machine is an optional solution.
Aluminum V-Notch Cutting Machine Specifications
This machine uses two powerful 2.2kw motors to drive the saw blade, and the clamp works to automatically clamp the material. The sensors adjust the cutting feed stroke. Accurate angle, no burrs on the cutting surface, high efficiency, and high precision.
funkcijos
- Galingas variklis: Galingas pjovimo variklis užtikrina stabilumą ir ilgaamžiškumą.
- Cutting capacity: Aluminum profile 90-degree V-groove cutting machine can cut aluminum profiles up to 90x100mm, and can cut aluminum profiles of various shapes.
- Saugos savybės: This machine has a transparent acrylic protective cover and an emergency stop button to prevent accidents and injuries.
- Didelis tikslumas: The aluminum profile 90-degree V-groove cutting machine table is precision ground to ensure that the saw blade moves vertically to the machine table with high precision and an accurate angle.
- Lengva valdyti: The machine adopts a positioning stopper, which is convenient to control the cutting position to ensure the same product size, is easy to adjust, and is easy to operate.
- Pjovimo aušinimo skystis: Aluminum profile 90-degree V-groove cutting machine adopts a cooling water pump, which automatically sprays out cutting coolant to protect the saw blade during cutting and prevent aluminum chips from sticking to the saw blade, which can effectively prolong the life of the saw blade and obtain better-cutting quality.
- Mažai priežiūros: Aluminum profile 90-degree V-groove cutting machines are generally low maintenance and require minimal lubrication and cleaning.
- Garantija: 24 mėnesių garantija aliuminio profilio pjovimo mašinai, visą gyvenimą trunkantis aptarnavimas po pardavimo.
Mašinos vaizdas
